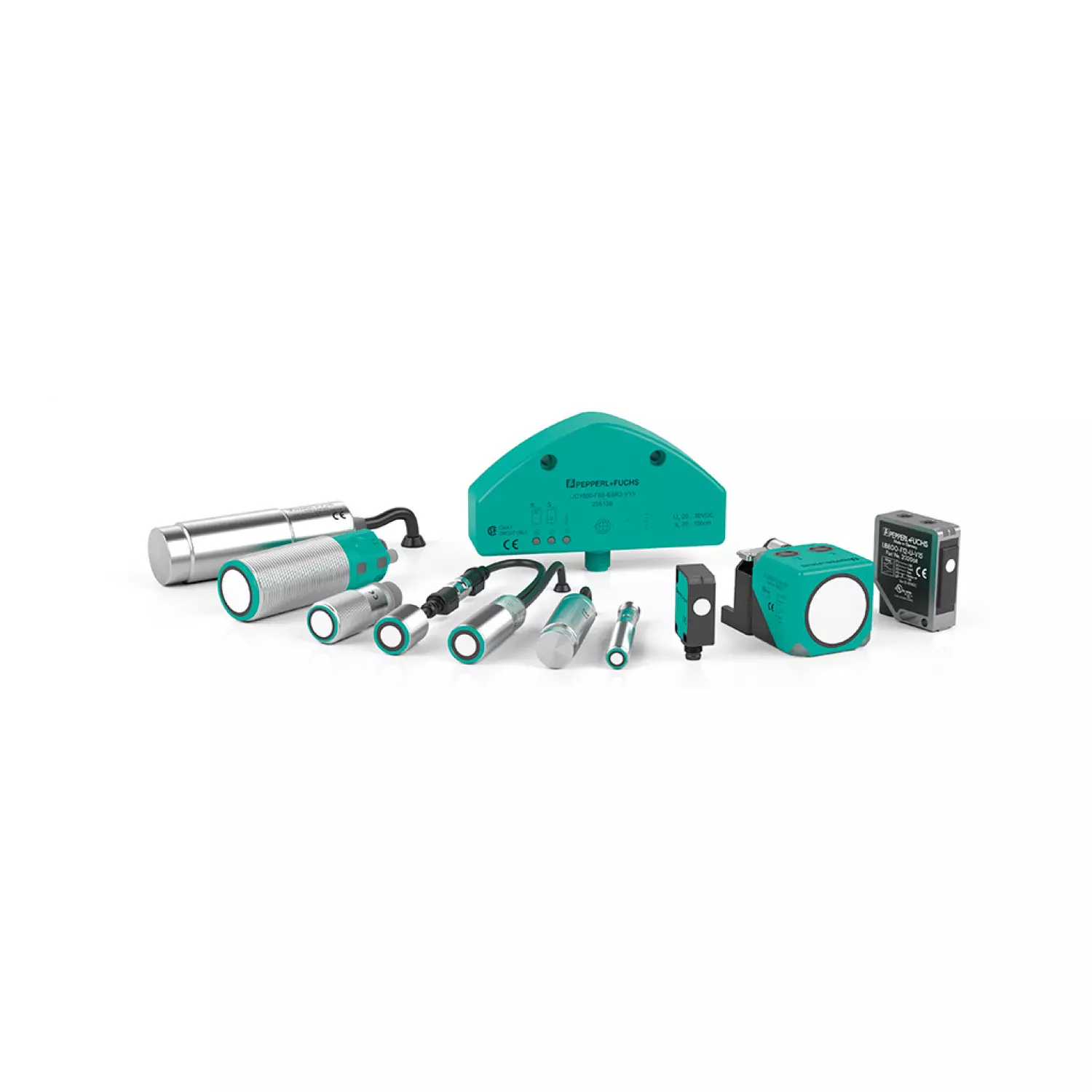

The Pepperl+Fuchs UB2000-F42-I-V15 is an ultrasonic sensor designed for precise, non-contact distance measurement and object detection in industrial automation. With a 60–2000 mm sensing range and 4–20 mA analog output, it can be integrated with PLCs and other industrial control systems.
For PEPPERL+FUCHS ULTRASONIC SENSOR UB2000-F42-I-V15 IN HYDERABAD, SCALAR AUTOMATION, located in Ahmedabad, provides industrial sensor and automation solutions for machine builders, manufacturers, system integrators and control-panel applications.
| Parameter | Specification |
|---|---|
| Model | UB2000-F42-I-V15 |
| Sensor Type | Ultrasonic Sensor |
| System | Single Head |
| Sensing Range | 60–2000 mm |
| Adjustment Range | 90–2000 mm |
| Dead Band | 0–60 mm |
| Standard Target Plate | 100 × 100 mm |
| Output | 1 × Analog 4–20 mA |
| Operating Voltage | 10–30 V DC |
| Resolution | 0.7 mm |
| Characteristic Deviation | ±1% of Full-Scale Value |
| Repeat Accuracy | ±0.1% of Full-Scale Value |
| Transducer Frequency | Approx. 175 kHz |
| Response Delay | Approx. 150 ms |
| Load Impedance | 0–300 Ω |
| Connection | M12 × 1, 5-pin |
| Protection Rating | IP54 |
| Operating Temperature | -25°C to +70°C |
| Housing | ABS |
| Dimensions | 80 × 80 × 34 mm |
| Weight | Approx. 140 g |
These specifications are taken from the Pepperl+Fuchs technical documentation for the UB2000-F42-I-V15.
● Non-contact ultrasonic distance measurement
● 60–2000 mm sensing capability
● 4–20 mA analog output
● 0.7 mm resolution
● TEACH-IN function
● Temperature compensation
● Adjustable operating mode
● Adjustable sound-cone divergence
● Bi-directional synchronization
● LED indication for operating and fault conditions
● Compact single-head design
● Suitable for PLC-based automation systems
The UB2000-F42-I-V15 can be used where reliable non-contact measurement is required. Its synchronization facility is useful for installations involving multiple ultrasonic sensors, while the adjustable parameters allow the sensor to be configured according to the application.
For PEPPERL+FUCHS ULTRASONIC SENSOR UB2000-F42-I-V15 IN HYDERABAD, SCALAR AUTOMATION supports industrial sensing requirements for automation machinery, PLC systems and control-panel projects.
