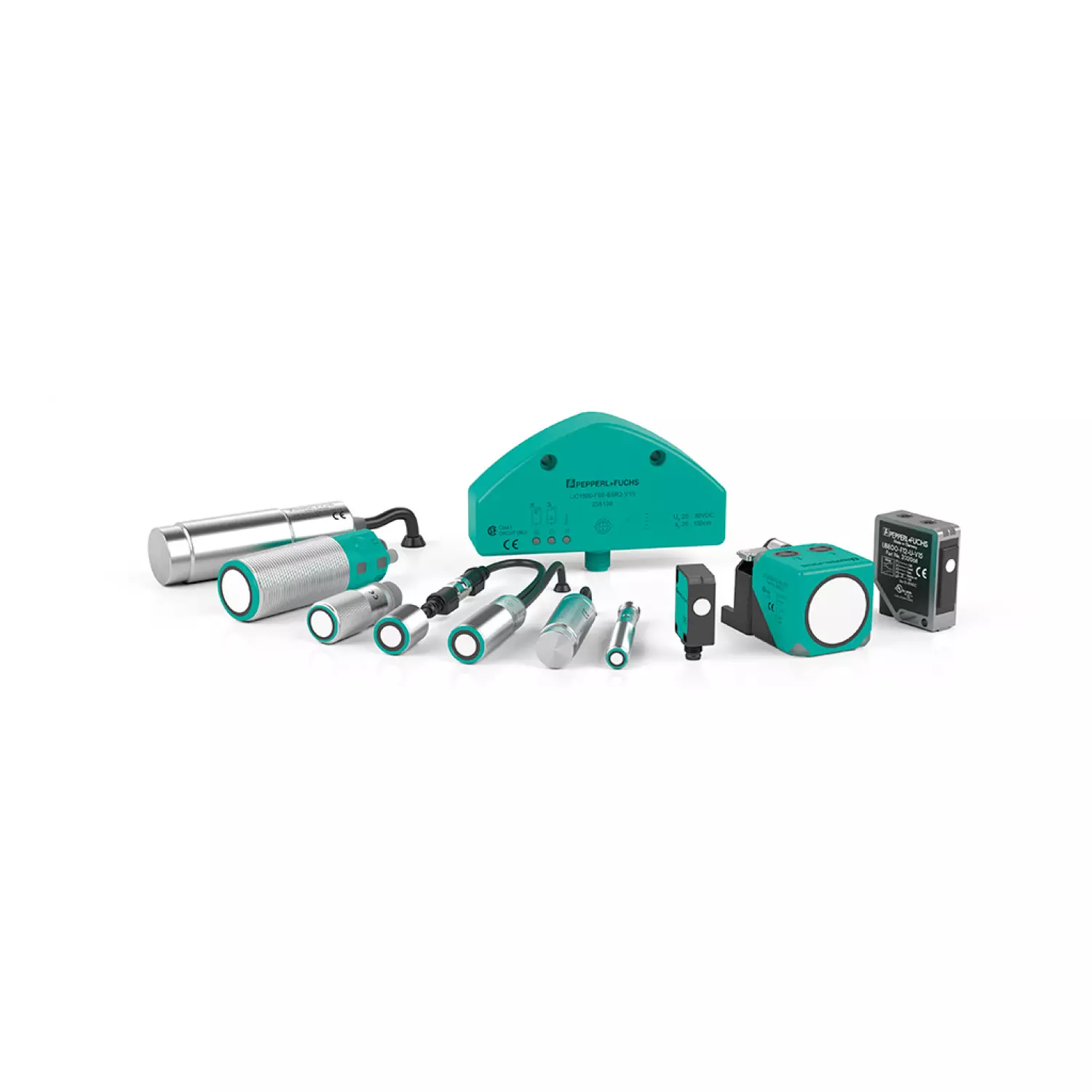

The Pepperl+Fuchs UB2000-F42-I-V15 is a single-head ultrasonic sensor designed for non-contact distance measurement and object detection in industrial automation. It combines an extended sensing range with an analog 4–20 mA output, making it suitable for connection with PLCs and industrial control systems.
For PEPPERL+FUCHS ULTRASONIC SENSOR UB2000-F42-I-V15 IN PUNE, SCALAR AUTOMATION, located in Ahmedabad, provides industrial sensing and automation solutions for machine manufacturers, system integrators and manufacturing applications.
| Parameter | Specification |
|---|---|
| Model | UB2000-F42-I-V15 |
| Sensor Type | Ultrasonic Sensor |
| System | Single Head |
| Sensing Range | 60–2000 mm |
| Adjustment Range | 90–2000 mm |
| Dead Band | 0–60 mm |
| Standard Target Plate | 100 × 100 mm |
| Transducer Frequency | Approx. 175 kHz |
| Response Delay | Approx. 150 ms |
| Output | 1 × Analog 4–20 mA |
| Operating Voltage | 10–30 V DC |
| Resolution | 0.7 mm |
| Characteristic Deviation | ±1% of Full-Scale Value |
| Repeat Accuracy | ±0.1% of Full-Scale Value |
| Load Impedance | 0–300 Ω |
| Connection | M12 × 1, 5-pin |
| Protection Rating | IP54 |
| Operating Temperature | -25°C to +70°C |
| Housing Material | ABS |
| Dimensions | 80 × 80 × 34 mm |
| Weight | Approx. 140 g |
These values are taken from Pepperl+Fuchs technical documentation for the UB2000-F42-I-V15.
● Non-contact ultrasonic measurement
● 60–2000 mm sensing range
● Analog 4–20 mA output
● 0.7 mm resolution
● TEACH-IN function for convenient setup
● Temperature compensation
● Adjustable operating mode
● Adjustable sound-cone divergence
● Bi-directional synchronization
● LED indicators for operating and fault conditions
● Compact single-head sensor construction
● Suitable for PLC-based automation systems
● Conveyor and material handling systems
● Packaging machinery
● Level measurement
● Object detection
● Distance monitoring
● Position sensing
● Machine automation
● Production equipment
● Process monitoring
● Industrial control panels
The 4–20 mA analog output allows the measured distance to be transferred to a PLC, controller or other compatible automation equipment for continuous monitoring and process control.
The UB2000-F42-I-V15 is suited to applications requiring continuous, non-contact distance measurement. Its adjustable parameters, synchronization functions and temperature compensation provide flexibility when integrating the sensor into automated machinery.
For PEPPERL+FUCHS ULTRASONIC SENSOR UB2000-F42-I-V15 IN PUNE, SCALAR AUTOMATION supports industrial automation requirements involving ultrasonic sensing, PLC integration and machine control systems.
