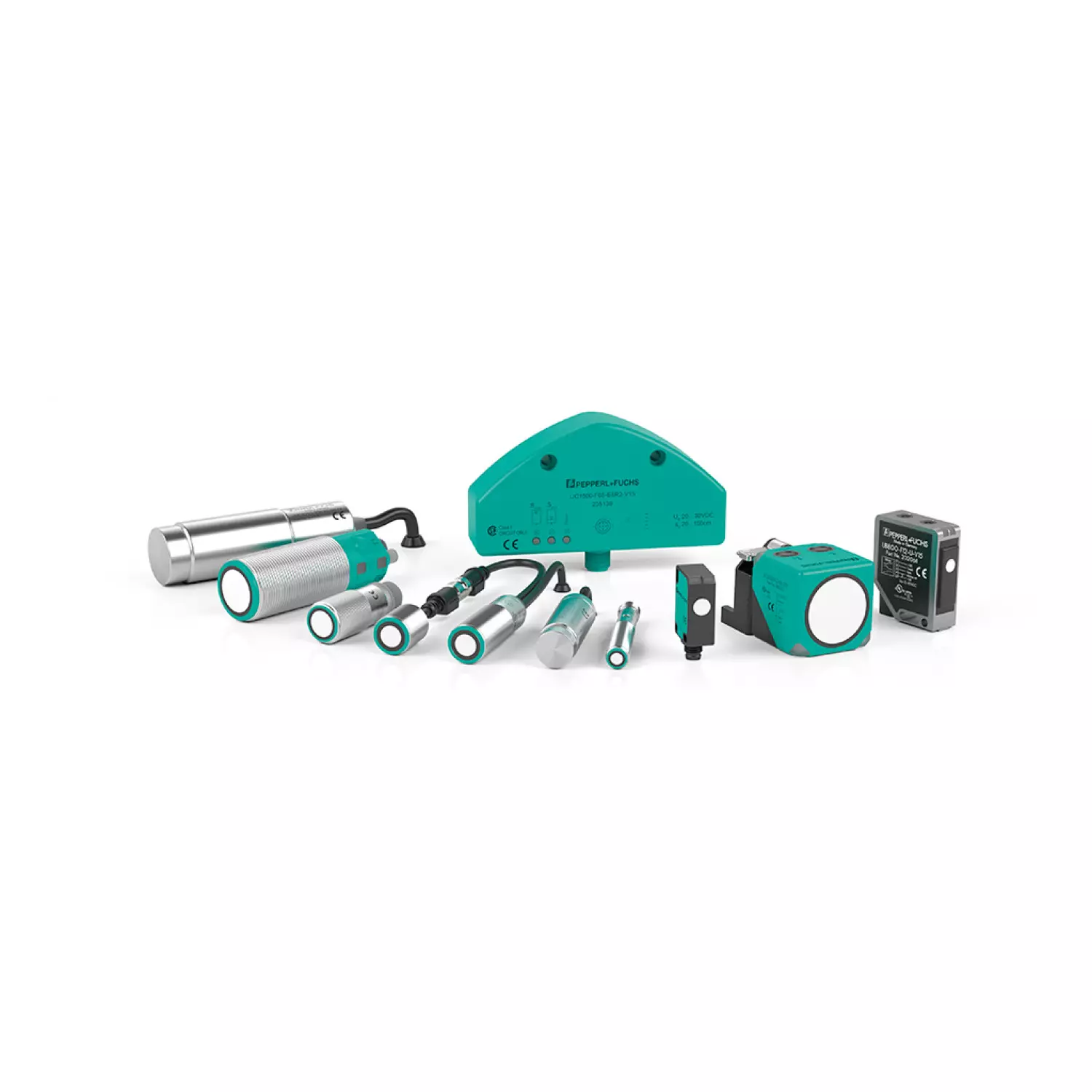

The Pepperl+Fuchs UB2000-F42-I-V15 is an industrial ultrasonic sensor designed for non-contact distance measurement and object detection. Its analog output, adjustable sensing parameters and synchronization capability make it suitable for integrating distance-monitoring functions into automated machinery and industrial control systems.
For PEPPERL+FUCHS ULTRASONIC SENSOR UB2000-F42-I-V15 IN BENGALURU, SCALAR AUTOMATION, located in Ahmedabad, provides industrial automation products and sensing solutions for manufacturing companies, machine builders, system integrators and control-panel applications.
| Parameter | Technical Details |
|---|---|
| Manufacturer | Pepperl+Fuchs |
| Model | UB2000-F42-I-V15 |
| Sensor Technology | Ultrasonic |
| System Configuration | Single Head |
| Sensing Range | 60–2000 mm |
| Adjustment Range | 90–2000 mm |
| Dead Band | 0–60 mm |
| Standard Target Plate | 100 × 100 mm |
| Analog Output | 4–20 mA |
| Operating Voltage | 10–30 V DC |
| Resolution | 0.7 mm |
| Characteristic Deviation | ±1% of full-scale value |
| Repeat Accuracy | ±0.1% of full-scale value |
| Transducer Frequency | Approx. 175 kHz |
| Response Delay | Approx. 150 ms |
| Load Impedance | 0–300 Ω |
| Electrical Connection | M12 × 1, 5-pin |
| Protection Rating | IP54 |
| Operating Temperature | -25°C to +70°C |
| Housing Material | ABS |
| Dimensions | 80 × 80 × 34 mm |
| Weight | Approx. 140 g |
● Non-contact measurement: Detects objects and measures distance without physical contact.
● Extended sensing capability: Covers distances from 60 mm to 2000 mm.
● Analog signal transmission: Provides a 4–20 mA output for compatible PLC analog inputs and control equipment.
● TEACH-IN functionality: Supports convenient configuration of sensing parameters.
● Temperature compensation: Helps maintain measurement performance across operating conditions.
● Adjustable sound cone: Allows adaptation of the sensing field for specific installation requirements.
● Synchronization capability: Supports coordinated operation of multiple sensors.
● LED status indicators: Provide visual information about power, detection and fault conditions.
● Conveyor and material-handling equipment
● Packaging and processing machinery
● Continuous distance monitoring
● Object detection and positioning
● Tank and vessel level measurement
● Automated production lines
● Industrial material detection
● Machine-position monitoring
● Process automation systems
● PLC-based measurement applications
The UB2000-F42-I-V15 ultrasonic sensor can transmit measured distance information to a compatible PLC or industrial controller through its analog 4–20 mA interface. The received signal can be used for monitoring, measurement and suitable automated control functions.
When designing the installation, the PLC analog-input configuration, sensor wiring, load impedance and required measurement range should be checked against the manufacturer's technical documentation.
For PEPPERL+FUCHS ULTRASONIC SENSOR UB2000-F42-I-V15 IN BENGALURU, SCALAR AUTOMATION supports industrial sensing requirements for machine automation, control systems and industrial electrical panels.
