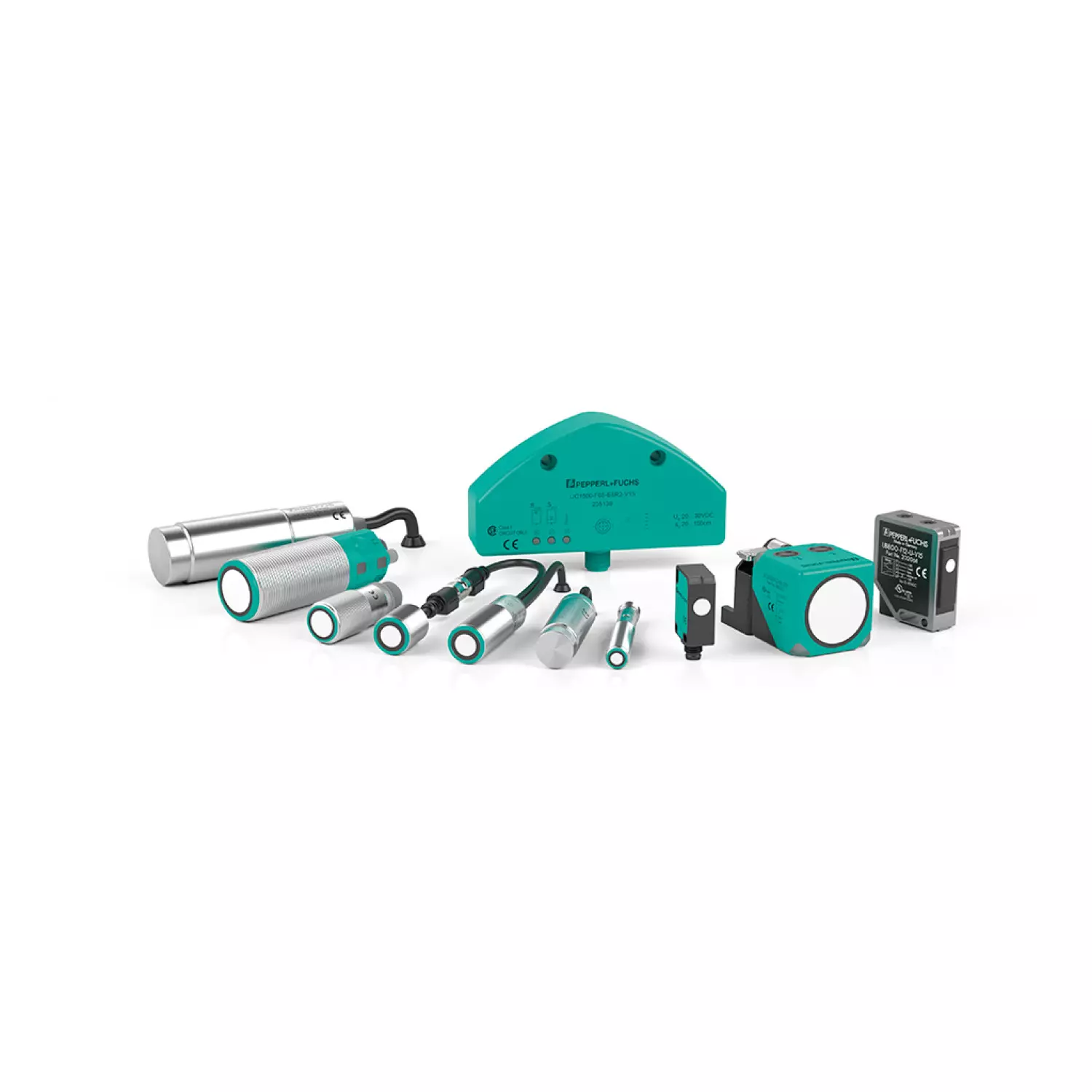

The Pepperl+Fuchs UB2000-F42-I-V15 is an ultrasonic measurement sensor engineered for industrial applications requiring reliable, non-contact distance detection. Its configurable sensing range and 4–20 mA analog output allow distance measurements to be incorporated into compatible PLC-based monitoring and control systems.
For PEPPERL+FUCHS ULTRASONIC SENSOR UB2000-F42-I-V15 IN KOCHI, SCALAR AUTOMATION, located in Ahmedabad, provides industrial automation products and sensing solutions for machine manufacturers, industrial facilities, automation integrators and control-panel applications.
| Parameter | Specification |
|---|---|
| Manufacturer | Pepperl+Fuchs |
| Model | UB2000-F42-I-V15 |
| Sensor Type | Ultrasonic Sensor |
| System | Single Head |
| Sensing Range | 60–2000 mm |
| Adjustment Range | 90–2000 mm |
| Dead Band | 0–60 mm |
| Standard Target Plate | 100 × 100 mm |
| Output Signal | Analog 4–20 mA |
| Operating Voltage | 10–30 V DC |
| Resolution | 0.7 mm |
| Characteristic Deviation | ±1% of full-scale value |
| Repeat Accuracy | ±0.1% of full-scale value |
| Transducer Frequency | Approx. 175 kHz |
| Response Delay | Approx. 150 ms |
| Load Impedance | 0–300 Ω |
| Connection | M12 × 1, 5-pin |
| Protection Rating | IP54 |
| Operating Temperature | -25°C to +70°C |
| Housing Material | ABS |
| Dimensions | 80 × 80 × 34 mm |
| Weight | Approx. 140 g |
● Non-contact sensing: Measures the distance to a target without requiring physical contact.
● Analog measurement output: Supplies a 4–20 mA signal for compatible PLC analog-input modules and controllers.
● Adjustable measurement limits: Supports configuration within the specified adjustment range.
● Teach-in configuration: Facilitates setup of the sensor's evaluation parameters.
● Temperature compensation: Helps account for temperature-related measurement variation.
● Sound-cone adjustment: Provides adjustable divergence in the near range to help suppress interference.
● Sensor synchronization: Offers bidirectional synchronization for suitable multi-sensor installations.
● Status indication: Green, yellow and red LEDs indicate power, detection, programming and fault conditions.
● Conveyor-based material handling
● Object-distance monitoring
● Continuous level measurement
● Packaging and processing equipment
● Automated production machinery
● Position and presence detection
● Material supply and transfer systems
● Process monitoring installations
● PLC-operated industrial machinery
● Measurement and control panels
The UB2000-F42-I-V15 can transmit its measured distance signal to a compatible PLC or industrial controller for monitoring and further processing. Depending on the application, the measurement can be used to track material position, monitor changing levels or support automated machine sequences.
Before installation, verify the PLC's analog-input compatibility, electrical wiring, permitted load impedance and required measurement limits against the manufacturer's documentation.
For PEPPERL+FUCHS ULTRASONIC SENSOR UB2000-F42-I-V15 IN KOCHI, SCALAR AUTOMATION supports industrial automation requirements involving ultrasonic sensing, PLC-based measurement and machine-control applications.
