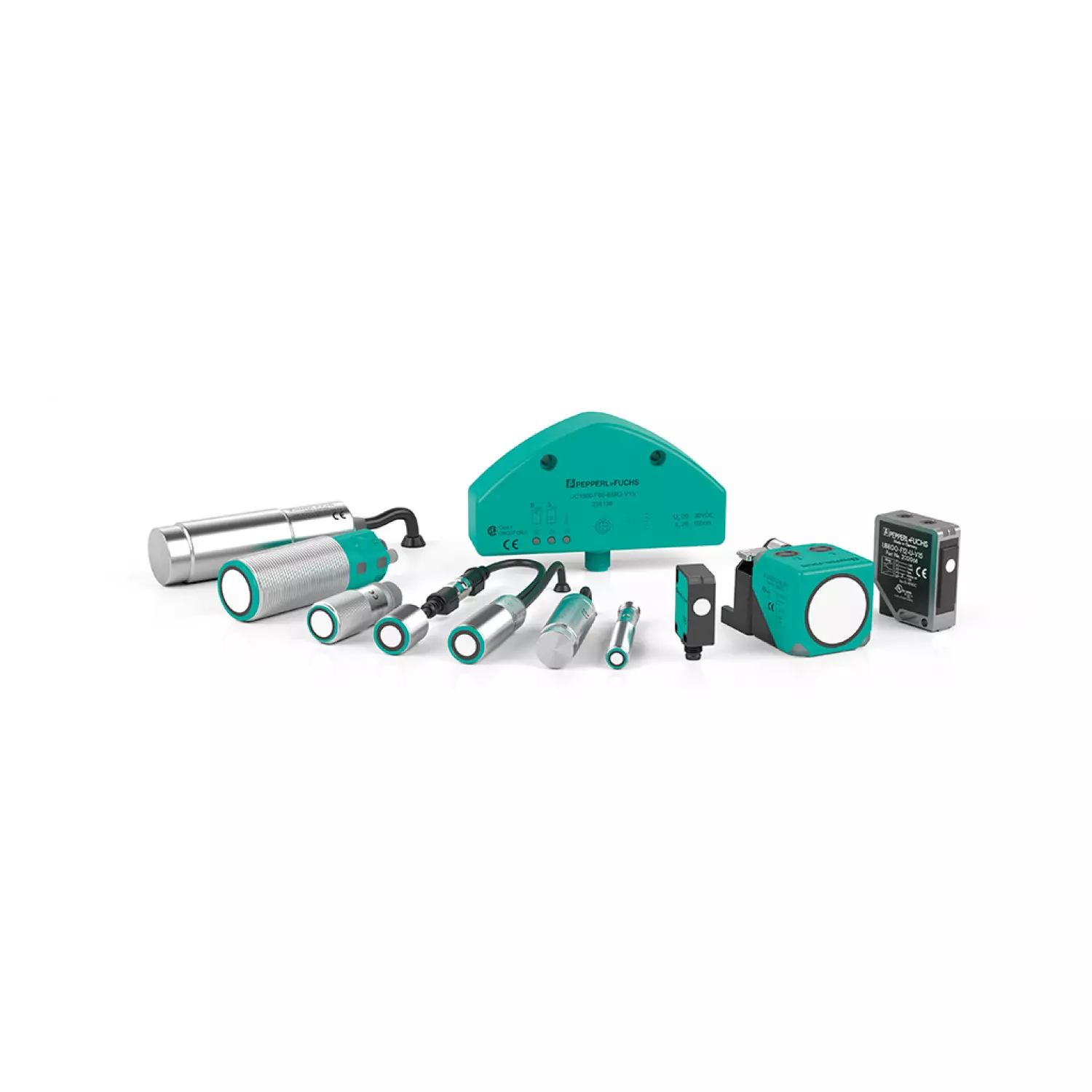

The Pepperl+Fuchs UB2000-F42-I-V15 Ultrasonic Sensor is designed for non-contact distance sensing in industrial automation systems. With an extended measurement range, adjustable sensing parameters and a 4–20 mA analog signal, this sensor can provide distance information to compatible PLCs and industrial controllers.
For PEPPERL+FUCHS ULTRASONIC SENSOR UB2000-F42-I-V15 IN PALGHAR, SCALAR AUTOMATION, located in Ahmedabad, provides industrial automation products and sensing solutions for manufacturing units, machine builders, system integrators and control-panel applications.
| Parameter | Specification |
|---|---|
| Manufacturer | Pepperl+Fuchs |
| Model Number | UB2000-F42-I-V15 |
| Sensor Technology | Ultrasonic |
| System Type | Single Head |
| Sensing Range | 60–2000 mm |
| Adjustment Range | 90–2000 mm |
| Dead Band | 0–60 mm |
| Standard Target Plate | 100 × 100 mm |
| Output Signal | Analog 4–20 mA |
| Operating Voltage | 10–30 V DC |
| Resolution | 0.7 mm |
| Characteristic Deviation | ±1% of full-scale value |
| Repeat Accuracy | ±0.1% of full-scale value |
| Transducer Frequency | Approx. 175 kHz |
| Response Delay | Approx. 150 ms |
| Load Impedance | 0–300 Ω |
| Electrical Connection | M12 × 1, 5-pin |
| Protection Rating | IP54 |
| Operating Temperature | -25°C to +70°C |
| Housing Material | ABS |
| Dimensions | 80 × 80 × 34 mm |
| Weight | Approx. 140 g |
● Ultrasonic technology for non-contact distance measurement
● Sensing capability up to 2000 mm
● 4–20 mA analog output for compatible control systems
● TEACH-IN function for sensor adjustment
● Temperature compensation for consistent measurement performance
● Adjustable operating mode
● Adjustable sound-cone divergence for interference suppression
● Bi-directional synchronization for coordinated sensor operation
● LED indicators for power, object detection and fault status
● Compact construction for industrial equipment integration
● Conveyor and material handling systems
● Packaging and processing machinery
● Continuous distance monitoring
● Object detection and positioning
● Tank and vessel level measurement
● Automated production lines
● Machine position monitoring
● Industrial process measurement
● PLC-based automation systems
● Machine control and monitoring panels
The UB2000-F42-I-V15 provides an analog distance signal that can be connected to a compatible PLC analog input or measurement controller. This allows measured values to be used for process monitoring, position control and automated machine functions.
Its TEACH-IN capability, configurable sensing parameters and synchronization options help accommodate different industrial installation requirements. Correct sensor selection and wiring should be based on the application and the manufacturer's connection instructions.
For PEPPERL+FUCHS ULTRASONIC SENSOR UB2000-F42-I-V15 IN PALGHAR, SCALAR AUTOMATION supports industrial sensing and automation requirements for machinery, measurement systems and control-panel projects.
